Kaste Core

Kaste Core - Automated Liquid Dispensing with Inline Dispensing

Kaste is Finnish for dew. Kaste Core puts those droplets under full control.

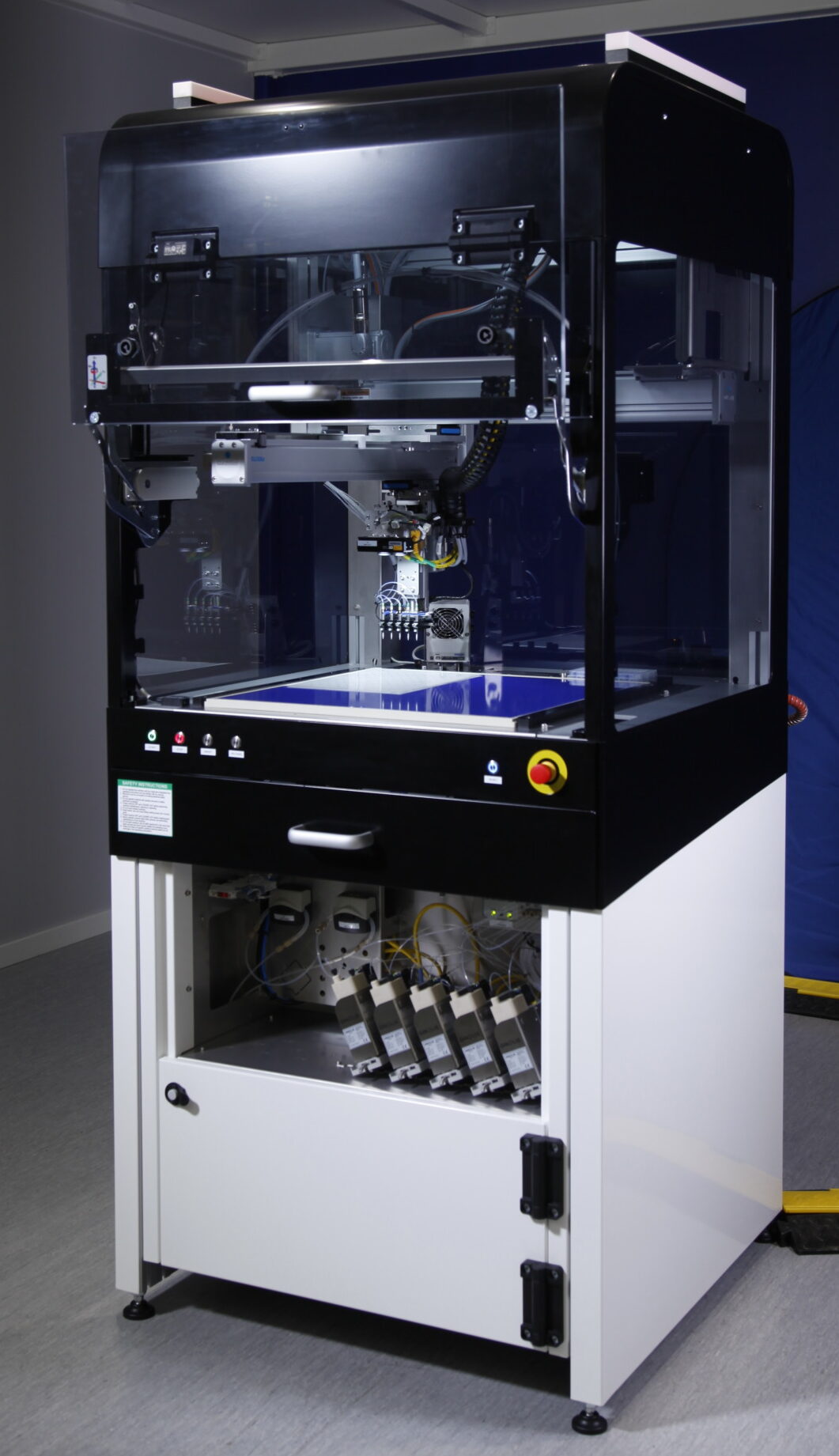

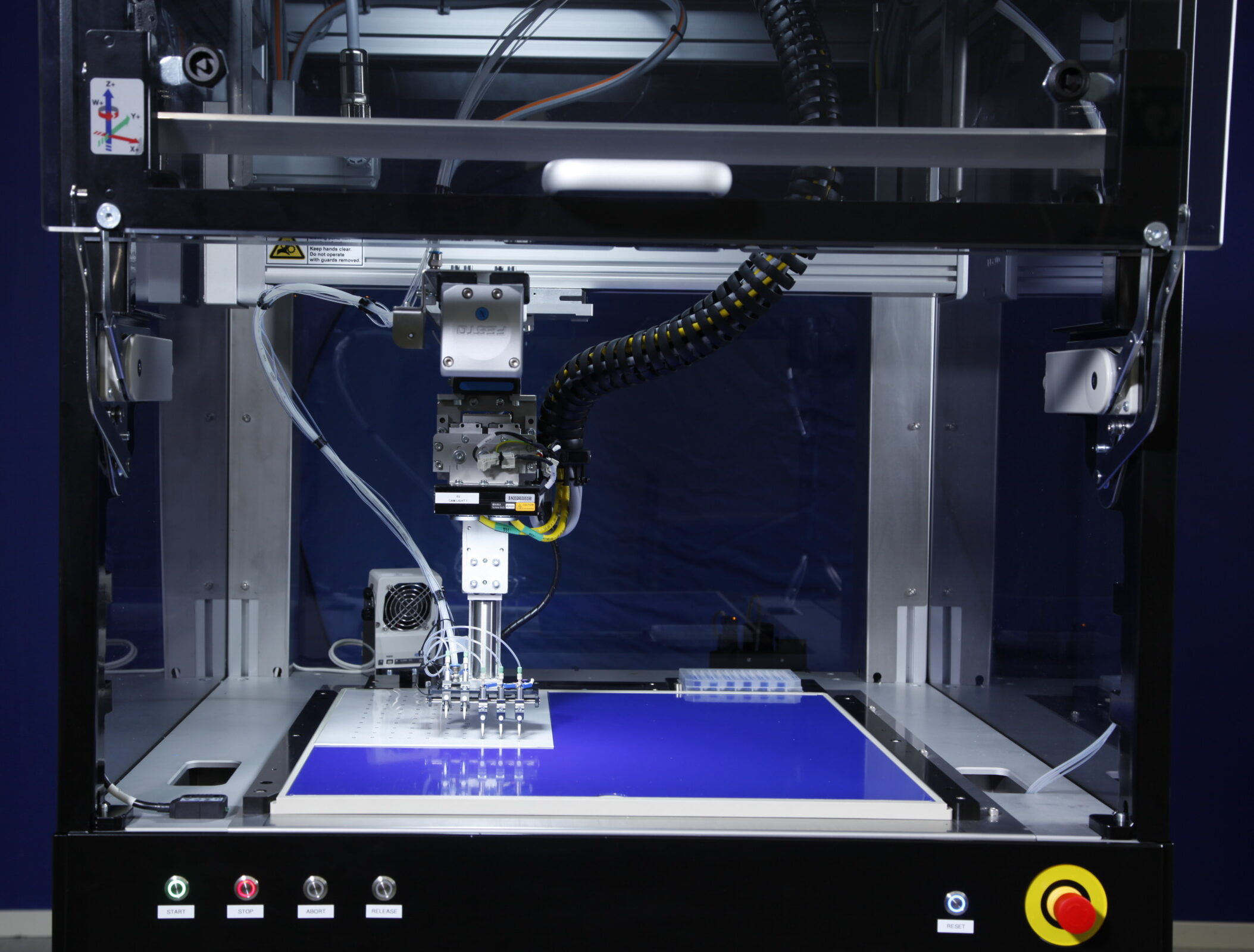

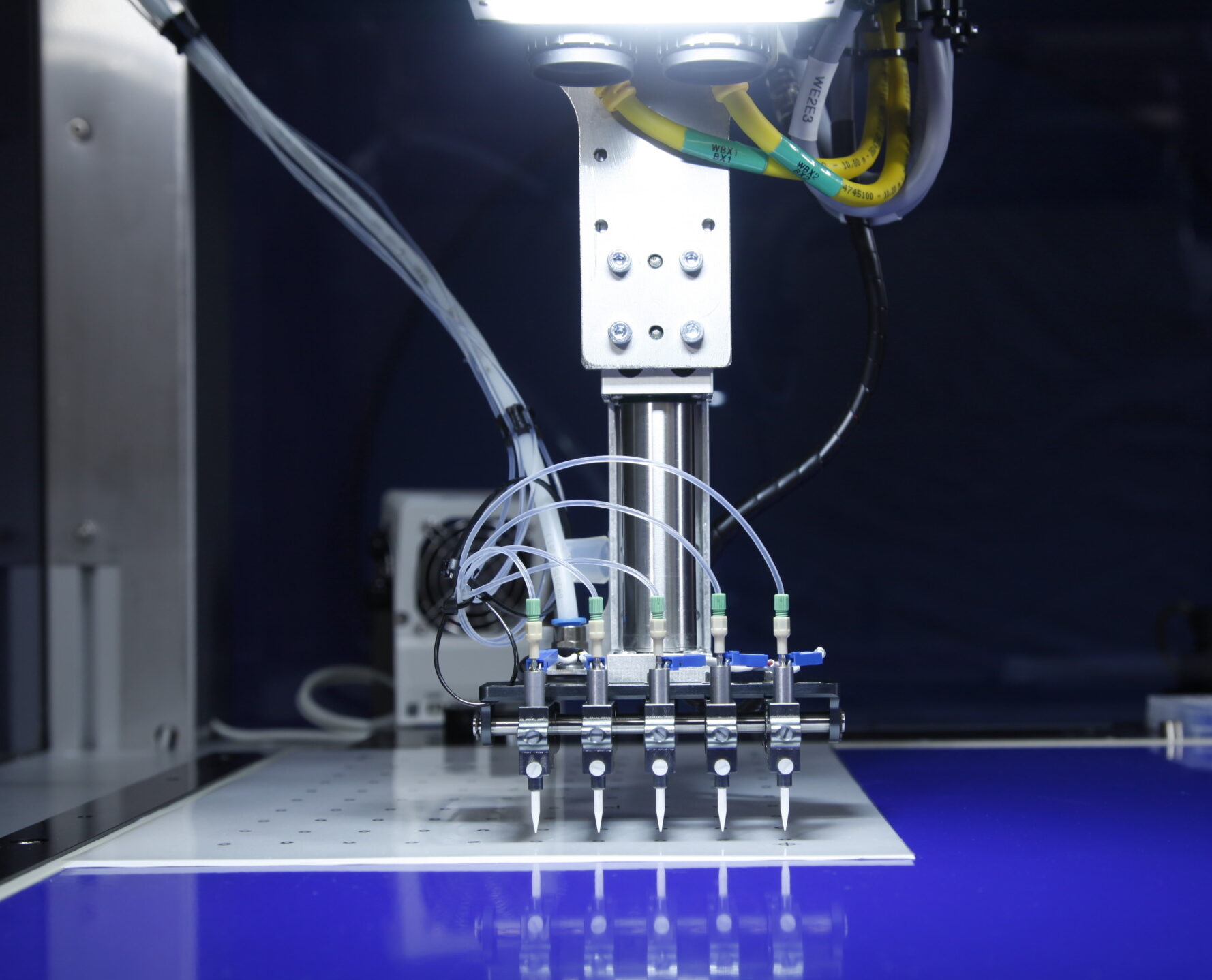

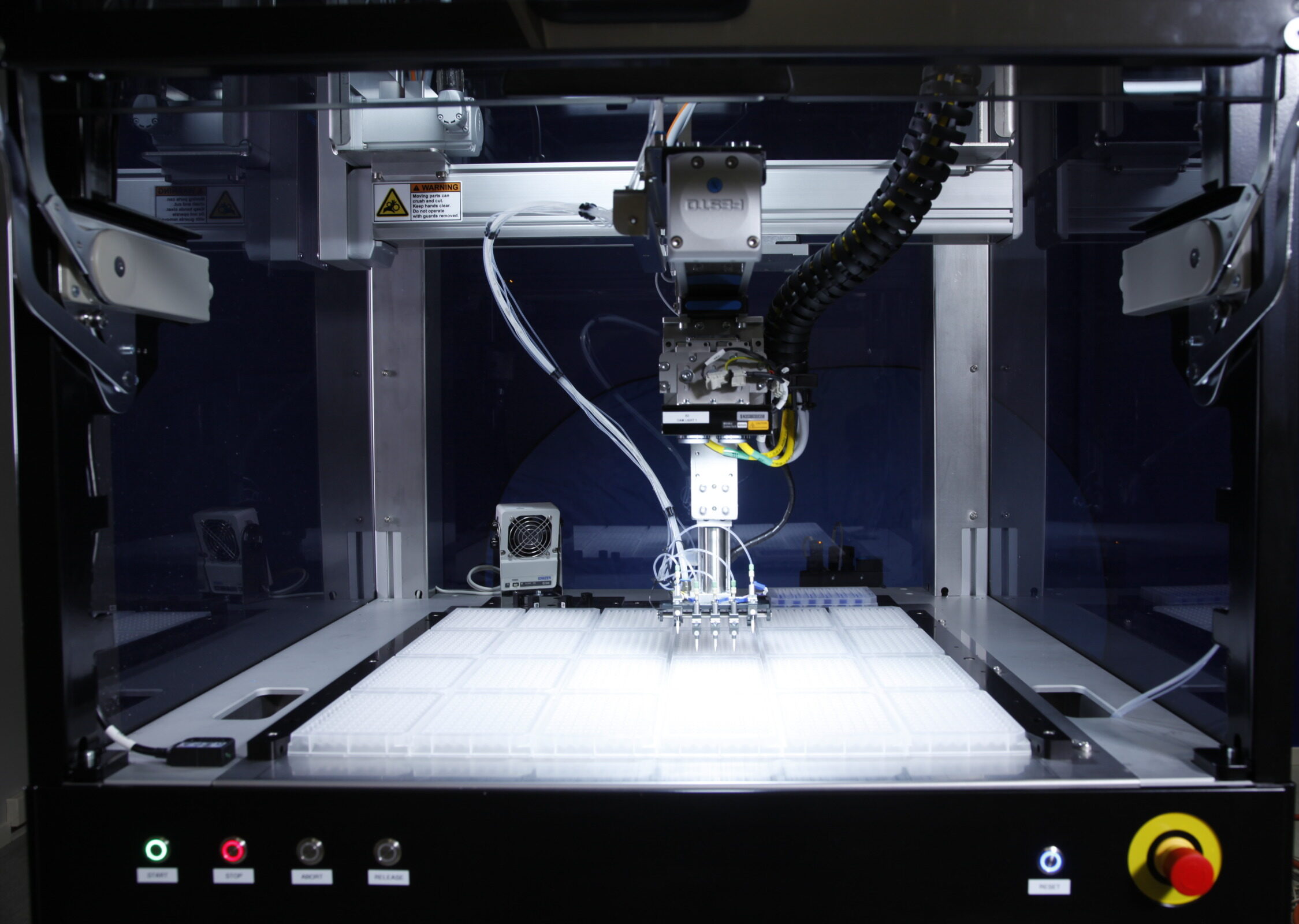

Kaste Core is a standalone platform for precision reagent deposition. A vacuum tray holds sheets flat. An X-Y-Z gantry then positions a multi-tip dispensing head over every product, guided by machine vision. Every droplet is inspected and recorded. Process development, pilot builds and production runs share one recipe, one quality standard and one traceable data set.

Specifications

  • Dispensing channels: 1 to 8 Kaste Nano dispensing units, with wiring and software pre-installed for expansion.
  • Inline quality control: Two gantry-mounted cameras inspect and record every dispensed droplet.
  • Recipe-driven operation: CSV recipes are authored offline and version-controlled on the device.
  • Deployment: Standalone laboratory equipment, ISO 7 cleanroom compatible.
Contact us
8 Channels
Scale from 1 to 8 Kaste Nano dispensing units on one platform
1 nL
The lowest volume dispensed per channel
1500 µl
The highest volume dispensed per channel
100 %
Of dispensed droplets vision-inspected and recorded

What are the benefits

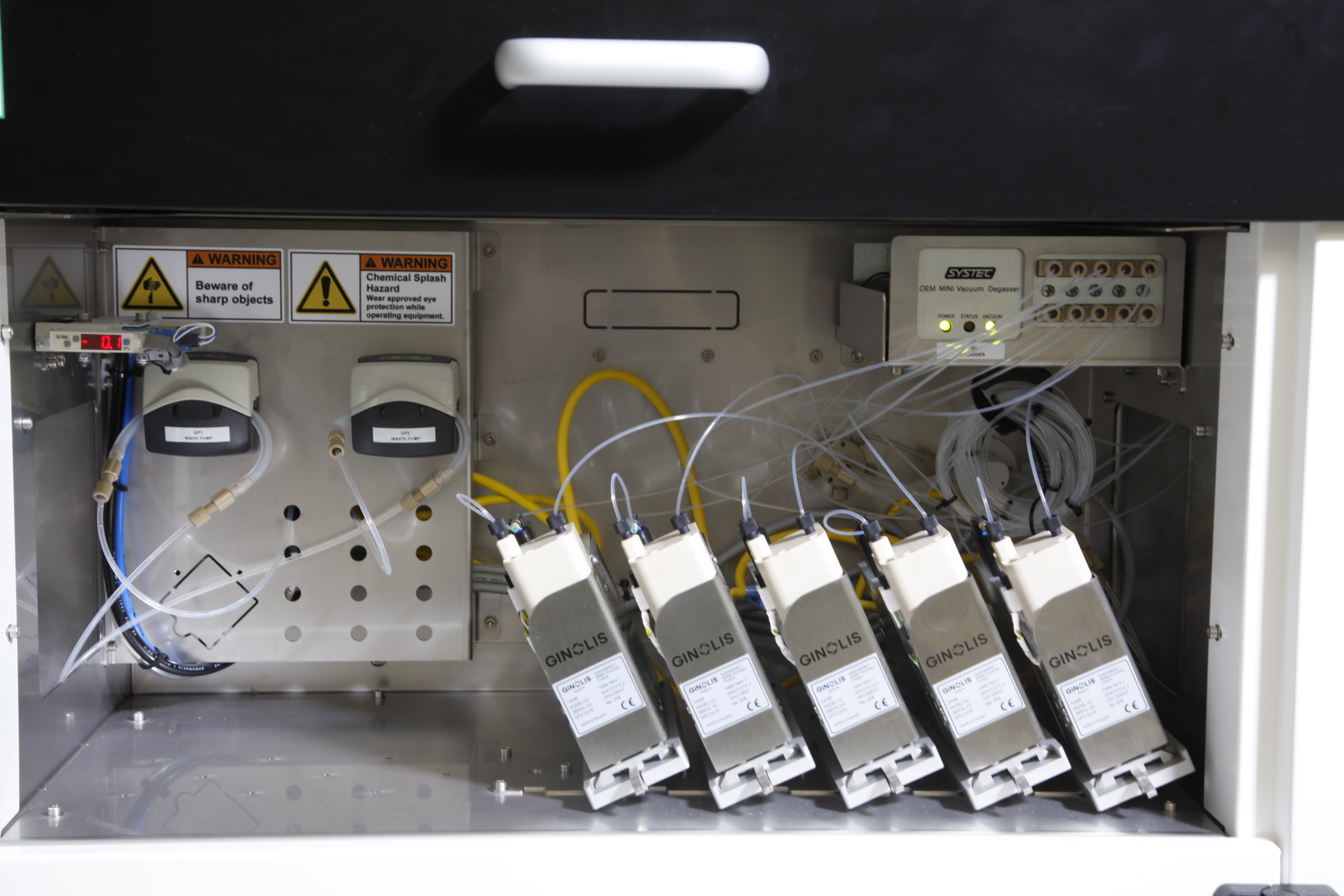

Precision Fluidics

Kaste Core units use Ginolis Kaste bellows pumps with a friction-free displacement principle. An integrated pressure sensor detects clogs, leaks and air in the line. Each channel dispenses 1 nL to 1.5 mL, at up to 100 doses per second.

Recipe-driven changeover

Products, layouts and dispensing patterns are defined in CSV files. Operators upload them through a browser-based Recipe UI. Switching product means selecting a recipe on the operator screen. No engineering work is needed.

Inline vision quality control

Two gantry-mounted cameras with dedicated lighting locate the target and read the product or tray identifier. They then image every dispensed droplet. Each deposit is scored against product criteria and gets a pass or fail result. Nothing leaves the process table uninspected.

Modular and upgradable

The platform scales from 1 to 8 dispensing channels. It accepts customer-specific dispensing heads and can be field-upgraded with automated tray feeding. The clean-in-place fluid path means no components come out for cleaning.

Ginolis Kaste I & II

Technical data

Kaste Core is a standalone dispensing and inspection platform. It takes a product from process development to production on one recipe and one data set.

Contact us
Product Sheet
Dispenser Support
Kaste Nano I and Kaste Nano II or Selected Pippettes
Dispenser Capacity
Supports up to 8 Kaste Nano I/II Dispensing units
Dispenser Range
2nl - 1000 ul - Dependent on Kaste Nano I/II or selected dispenser
Max dosing speed
100 doeses/sec/channel
Positioning
XYZ gantry, stepper motors with absolute encoders
Vision
2 x gantry-mounted cameras with dedicated lighting
Wash pumps
2 x peristaltic
Cleaning
Clean-in-place fluid path
Dimensions (mm)
H 2000 W 1000 D 850
Compressed Air
6 bar, approx. 50 l/min
Weight (kg)
300 Kg - 400 Kg Configuration dependent
Power
1-phase 100-240 VAC/ 50/60 Hz, 20A
Communication
2 x RJ45 (CAT6a), USB, WLAN
Control System
Embedded industrial PC, Beckhoff TwinCAT3
Dispensing Range
2nl - 1000 ul - Dependent on Kaste Nano I/II or selected dispenser
Dispensing Accuracy
Dispenser dependent. For Kaste Nano: <1% CV (>50 nl) <3% CV (@50 nl) <8% (@2,5 nl)
Auxiliary
Digital input and output
Data Platform
Ginolis Kaiku (Cloud)
Operating Conditions
15 to 25 °C, 35 to 65 % RH non-condensing, ISO 7 compatible
Safety
Front-panel emergency stop, interlocked front hatch, lockable main switch
